jinan factory directly cnc side holes drilling machine /wood working machine

Origin
N/A
Minimum Order
1
Inspection
N/A
Packing
standard plywood case
Delivery
after 7-15 days receive money
Payment
T/T

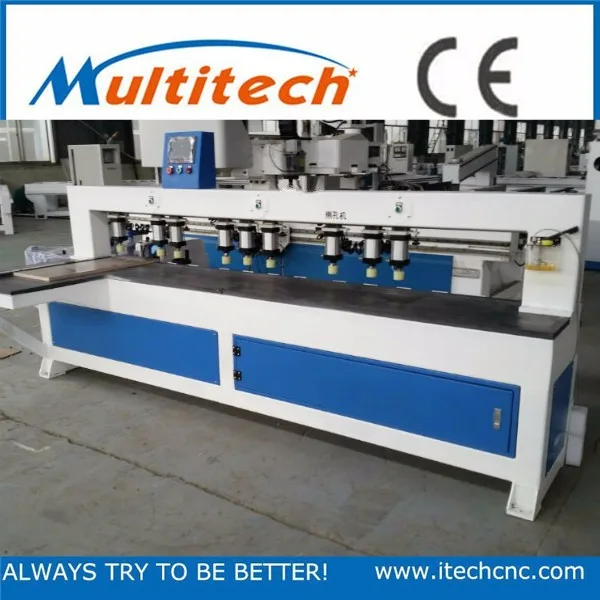

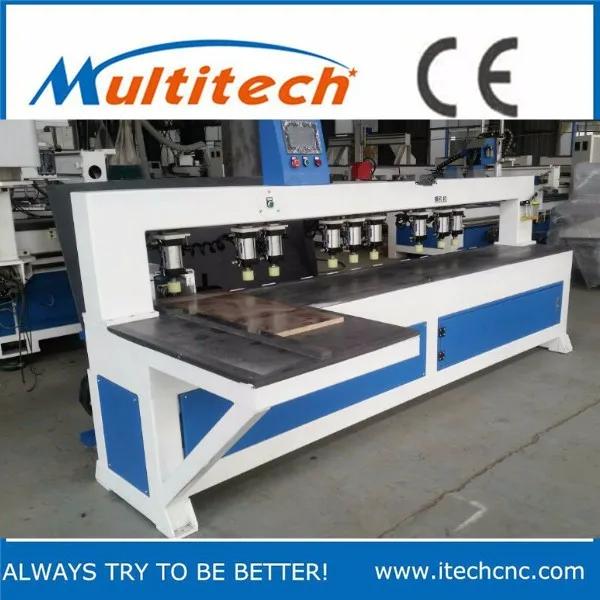

jinan factory directly cnc side holes drilling machine  / wood working machine



Features  of   cnc side holes drilling machine  / wood working machine

1.A professional special machines used for horizontal perforated plate custom furniture,Completely replace the traditional drill, to get rid of the traditional punching mode.Dependence on skilled workers, scan code processing directly.Through the production with special design software

2.Good parts: adopt Taiwan linear guide domestic ball screw; Taiwan reducer;

3.Reasonable design: independent computer control, operation and maintenance more convenient.

4.Perfect automatic oil lubrication system, prolong the service life of the machine.

Parameter of wood door horizantal lock hole making machine / cnc wood side drilling machine

model Side drilling machine :



X-Y-Z axis working area     2800mm(Maximum length),width no limit

machine size :            3400x2280x1180mm

maximum workpiece length:    2800mm

minmum workpiece length:      50mm

maximum workpiece width:     no limit

minmum workpiece width:      50mm

workpiece thickness :       <=30mm

Y movement:             rack and pinion,gear drive/Taiwan


Z movement:             pneumatic cylinder

Guide linear:            20 square/Taiwan

Max.speed:              25,000mm/min

Max.cutting speed:         20,000mm/min

spindle powe:             3.5kw Italian HSD

spindle speed :            18,000rpm

Inventer power:            3.7kw

Drive motor :              Servo/Japan

working voltage :           AC380V/50-60HZ,3-phase

command:                 code G code

computer interface :        USB 2.0

collet:                 ER32-3.175mm,6mm,12.7mm

Controls:               Quick CNC dedicated controlling system

Packing dimensions:         3600x2280x1500mm,1200kgs

Standard enquipment included   1.Manual oil lubrication system


                      2.Dedicated positioning device

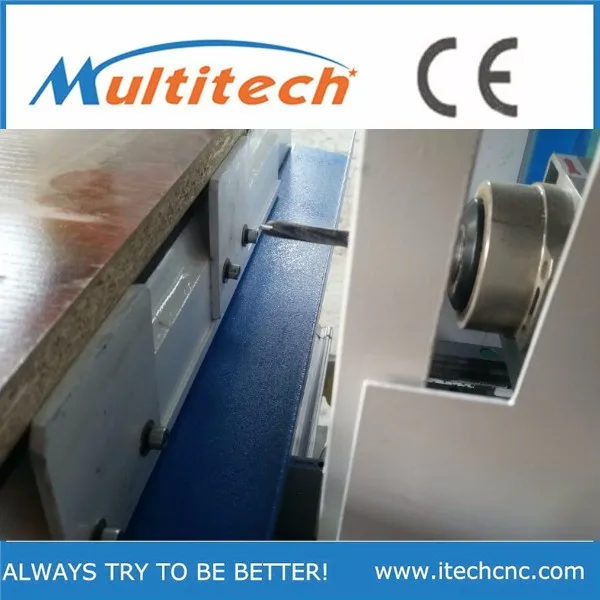

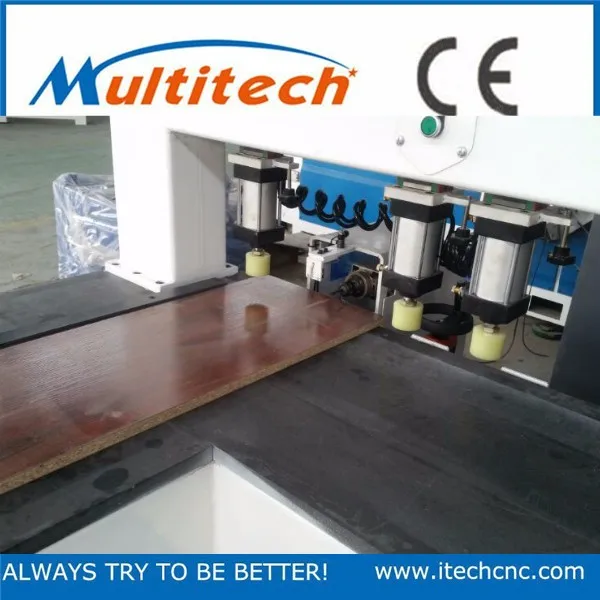

More detail of cnc side holes drilling machine /wood working machine

Our Company

Jinan Multitech Machinery Co.,Ltd is a top of the line CNC machine manufacturer. We have 2 factories manufacturing multiple types of CNC machines including lasers and routers.Located in Jinan, SHANDONG province.

Our products have sold to more than 150 countries all over the world, and welcomed by consumers,and have got very good evaluation.

Contact Me

Jinan Multitech Machinery Co.,Ltd is a top of the line CNC machine manufacturer .We have 2 factories manufacturing multiple types of cnc machine including lasers and routers .Located in Jinan ,SHANDONG province .Our products have sold to more than 150 countries all over the world ,and welcomed by consumers ,and have got very good evaluation .
