joygoal water juice jelly preformed bag filling machine

Origin
N/A
Minimum Order
N/A
Inspection
N/A
Packing
N/A
Delivery
N/A
Payment
N/A

Product Description:

Introduce of   Automatic liquid spout pouch filling machine /spout pouch filling capping machine:

    t
  • Widely used for a variety of products, such as jelly, milk, butter, fruit juices, paste, chemical liquid, water and so on.
  • t
  • High reliability, convenient operation, wide applicability, high performance.
  • t
  • Import control elements, SchneiderMitsubishiOrmonSiemens, pneumatic component: Airtac,Festo, SMC.and they make the system more stable and reliable.
  • t
  • Contact us to get more details.

Working process of  Automatic liquid spout pouch filling machine /spout pouch filling capping machine:

    t
  • Automaitc pouch loading
  • t
  • Printing  -  printing machine required, optional feature (can conntect with inkjet printer)
  • t
  • No pouch detection
  • t
  • Vacuum - optional feature
  • t
  • Filling  -  adopt with leak-proof nozzles
  • t
  • Nitrogen flushing - optional feature
  • t
  • Spout cleaning
  • t
  • Feeding and inserting cap
  • t
  • No cap detection
  • t
  • Capping
  • t
  • Discharging
  • t
  • Transport - conveyor belt required, optional feature

Other optional device for spout pouch filling machine:

    t
  • Caps feeder to feed caps to spout pouch filling machine automatic;
  • t
  • Whole machine made of stainless steel or frame of machine made of stainless steel;
  • t
  • Air clean system;
  • t
  • Open dust cover door detector to keep production safe;
  • t
  • CIP system fit for spout pouch filling machine;
  • t
  • Conveyor belt to transport finished pouches;
  • t
  • Printing machine to print date or lot numbers;
  • t
  • Air compressor to supply compressed air for spout pouch filling machine  running;
  • t
  • Stainless steel pump and pipe  to feed product to spout pouch filling machine  automaic;
  • t
  • More spare parts ;
  • t
  • Nitrogen generator to supply nitrogen for spout pouch filling machine;

 Technical parameters of spout pouch filling machine:



tttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttt
NameModelFilling headsttt

Capacity

ttt

(Pouches/hour )

ttt
ttt

Filling volume

ttt

(Can be adjusted)

ttt
ttt

Error

ttt

(ml)

ttt
ttt

Power

ttt

(KW)

ttt
ttt

Air source

ttt

(M3/min)

ttt
power sourcettt

Weight

ttt

(KG)

ttt
 spout pouch filling capping machine ZLD-1A1800-100020-500ml1%10.6customized1000
 spout pouch filling capping machine ZLD-2A21600-200020-500ml1%1.20.6customized1200
 spout pouch filling capping machine ZLD-3A32400-300020-500ml1%1.40.65customized1400
 spout pouch filling capping machine ZLD-4A43200-400020-500ml1%2.00.65customized1600
 spout pouch filling capping machine ZLD-5A54000-500020-500ml1%2.30.7customized1800
 spout pouch filling capping machine ZLD-6A65000-600020-500ml1%2.50.7customized2000

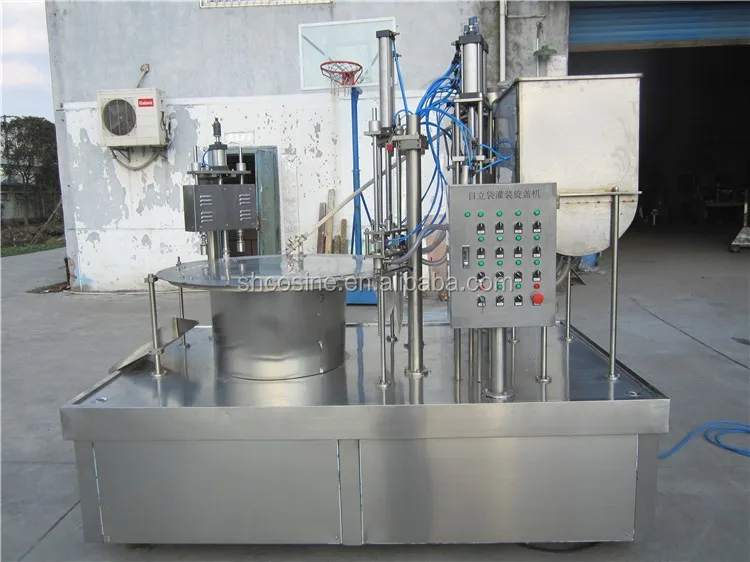

Machine picture.



joygoal water juice jelly preformed bag filling machine











Shanghai Joygoal Food Machinery Co., Ltd. is a company devoted to the field of food machinery. We are a comprehensive enterprise which integrates research, development, manufacture, installation and maintenance. We have advanced equipment, rich experience, highly-qualified scientific researchers and professional staff members for the after-sales services.

Our major products include stand-up pouch filling and cap-screwing machines, cup filling and sealing machines,coffee capsule filling sealing machine, forming-bag filling and sealing machines, liquid packing machines, solid packing machines, strapping machines, vacuum packing machines, beverage production lines, etc. Our products have stable performance, and are easy to operate, and they not only fill a gap in Chinese market but also reach the internationally advanced level. Therefore, our products have got high praise from customers both at home and abroad since they launched in the market.

Following the developing markets, our technology is also innovative. Our personnel are always in the spirit of "continuous improvement and excellence", and with the superior quality products, favorable price and good after-sales services, we try to win every customer's trust.

Sincerely, we are willing to cooperate and develop together with you!
